Shutter Clearance Charts

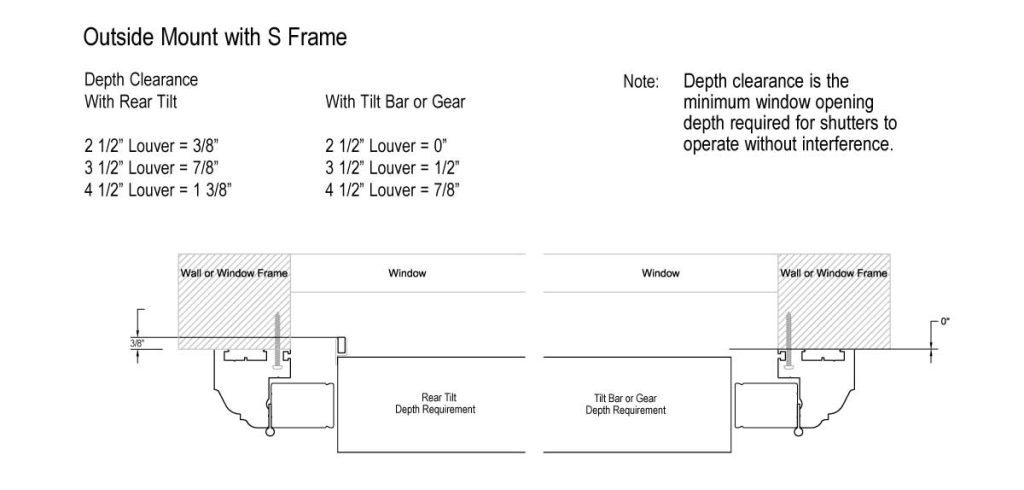

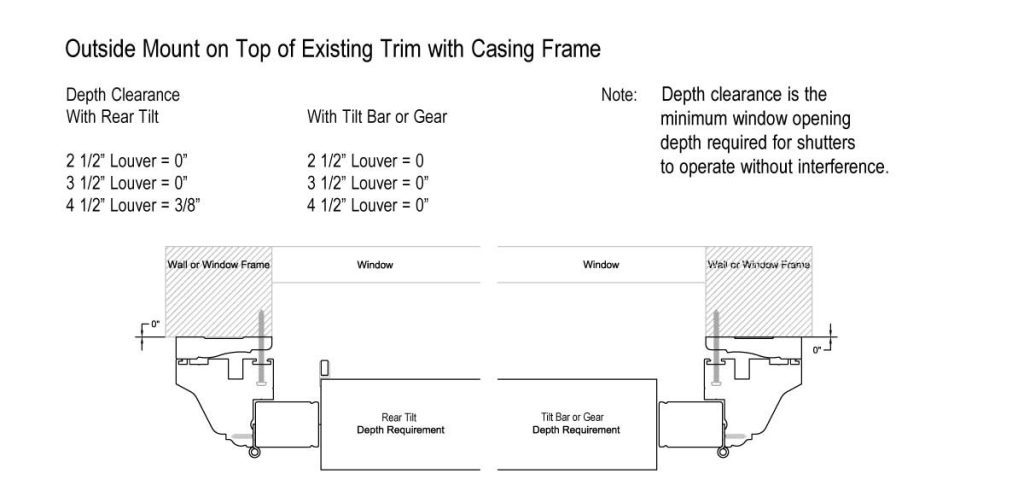

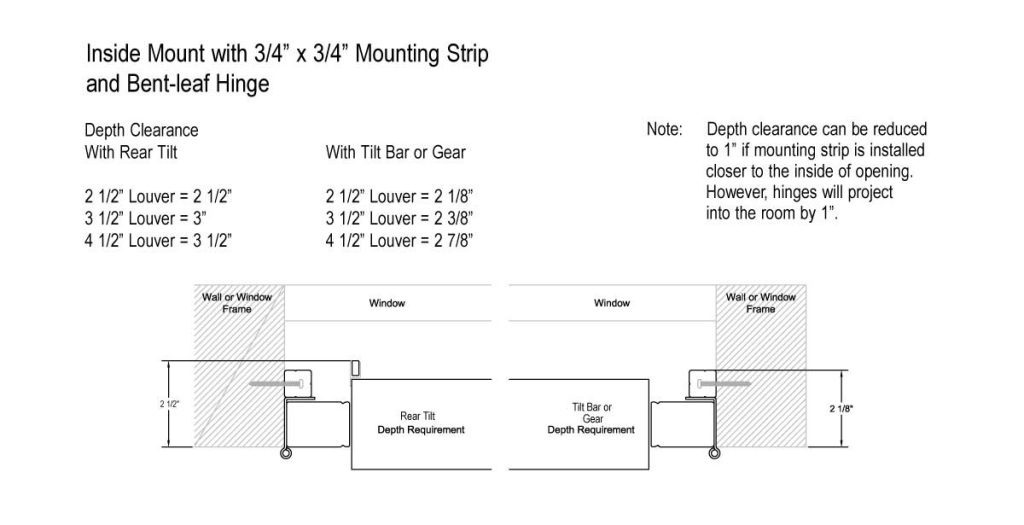

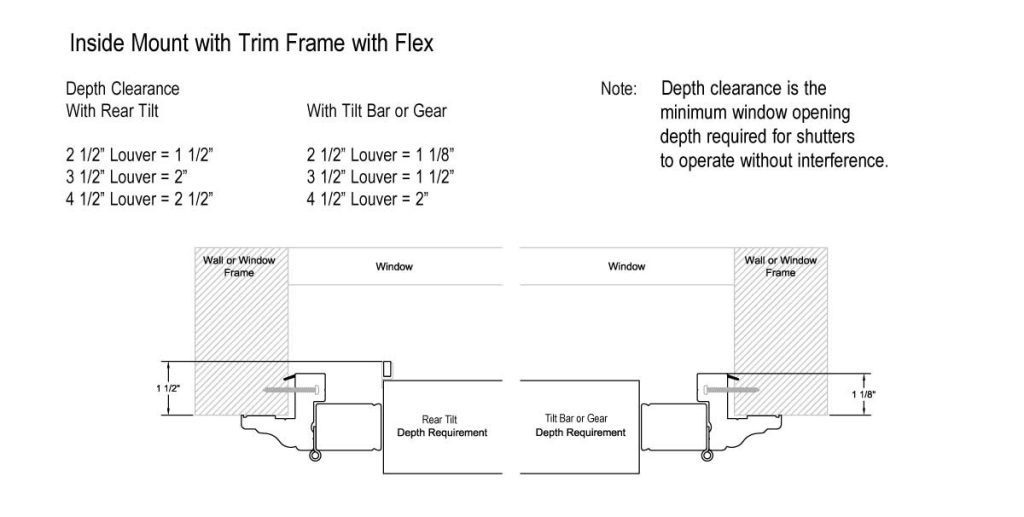

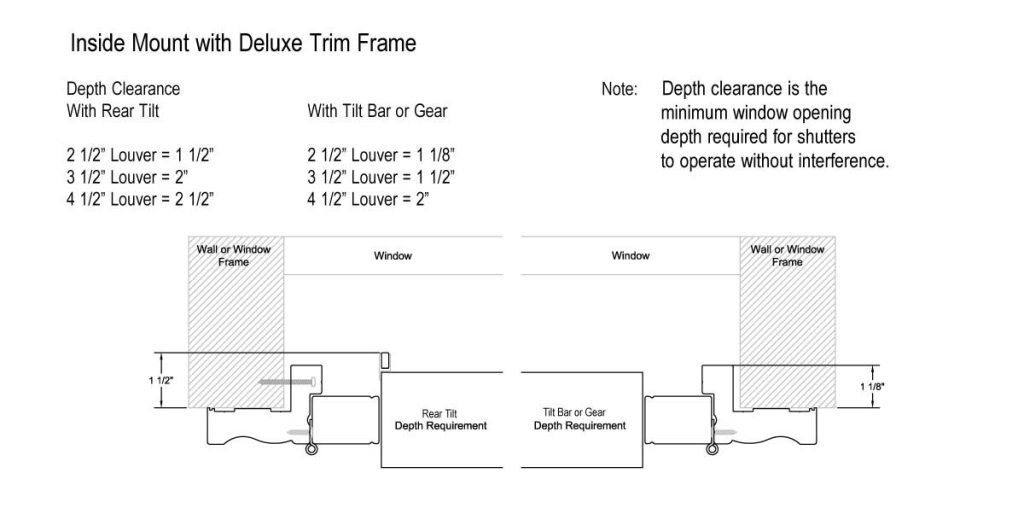

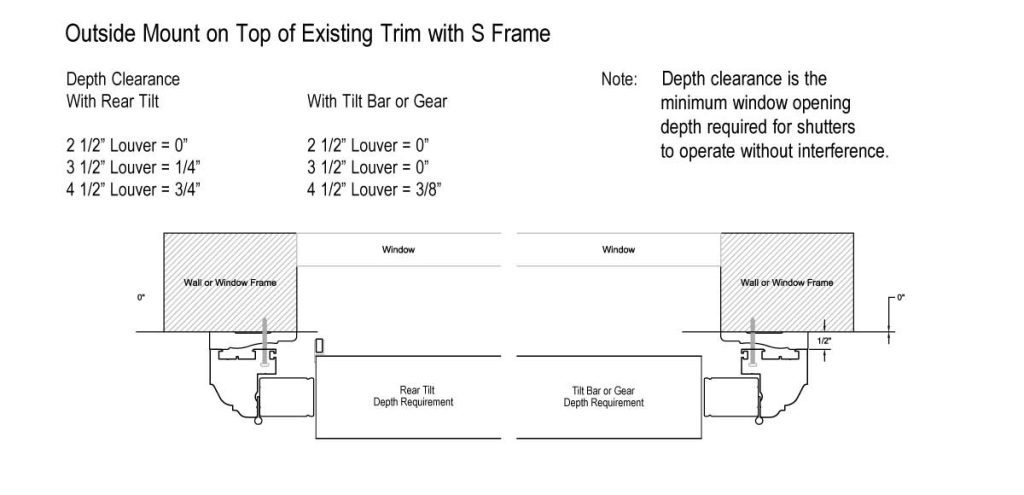

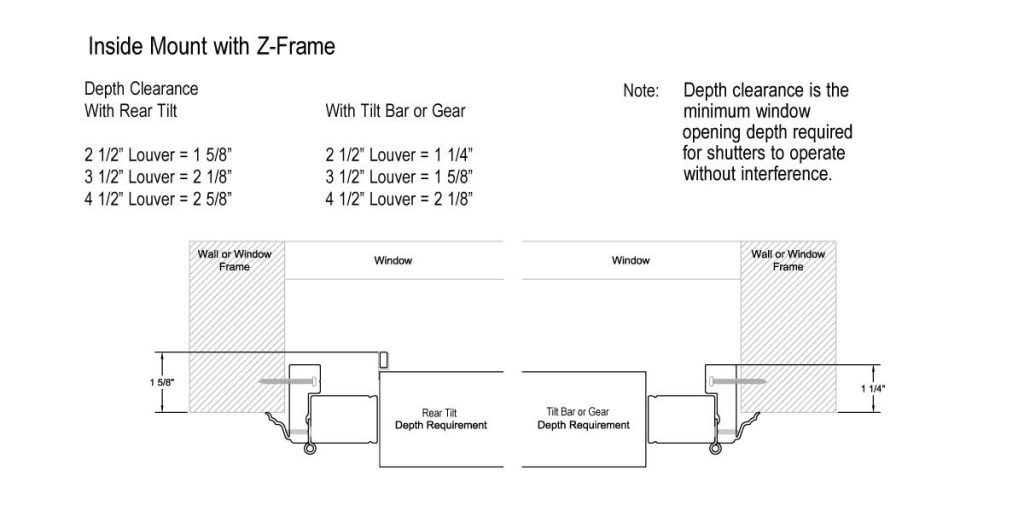

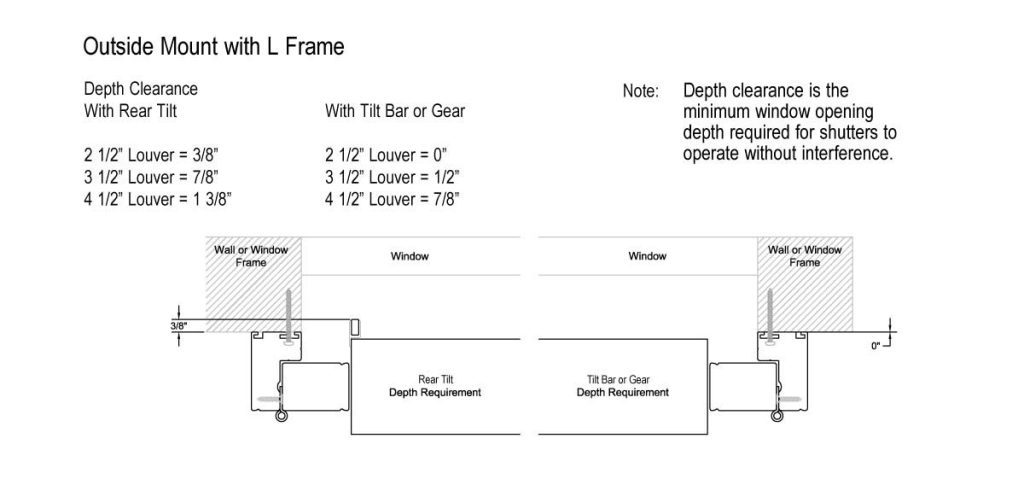

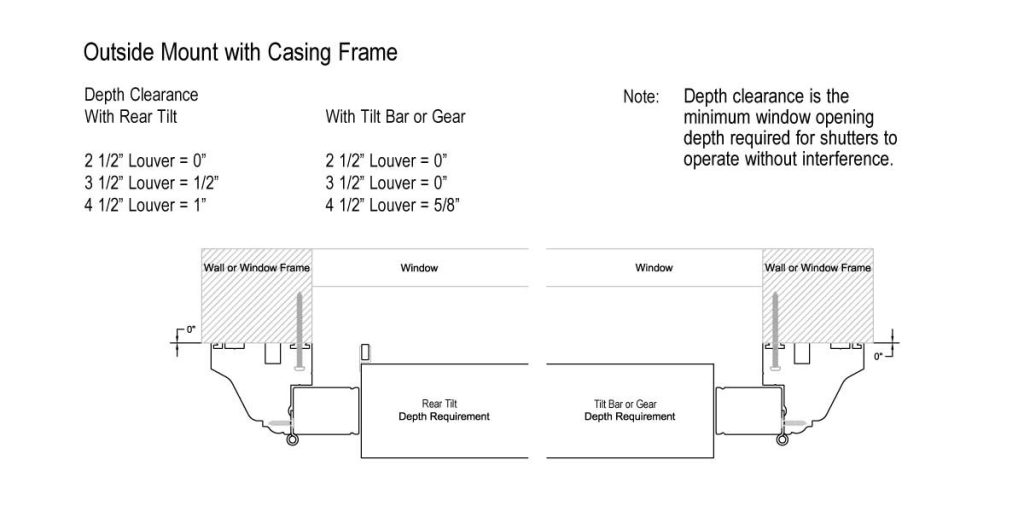

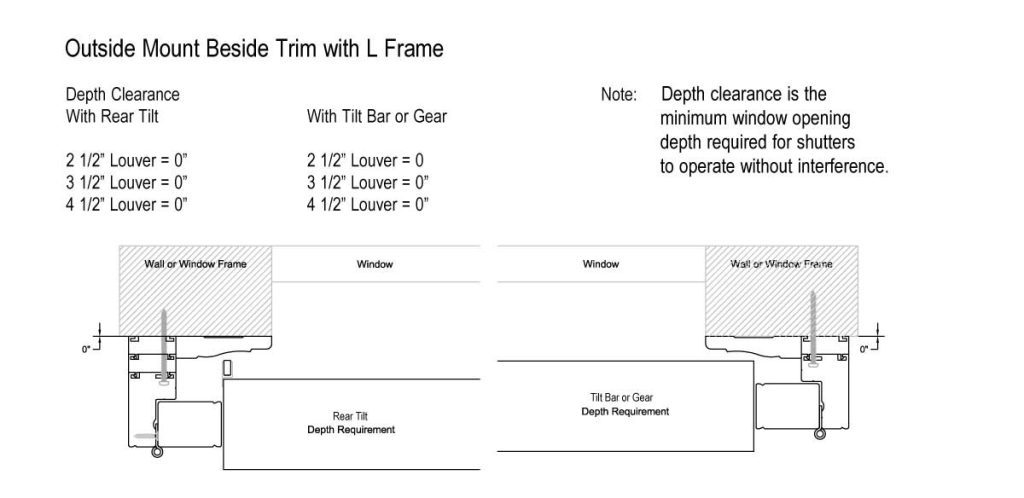

Depth Clearance is the minimum window opening depth required for shutters to operate without interference. Measure the depth of your window opening and then examine the drawings below to determine if an inside mount is possible or an outside mount is required. Click on the link below to learn more about mounting frame types.

Confused? Give us a call, toll free, at 888-887-4623. Tell us about your windows and we’ll help you determine the proper type of assembly to order.

Also Click Here For More About Mounting Frames.
